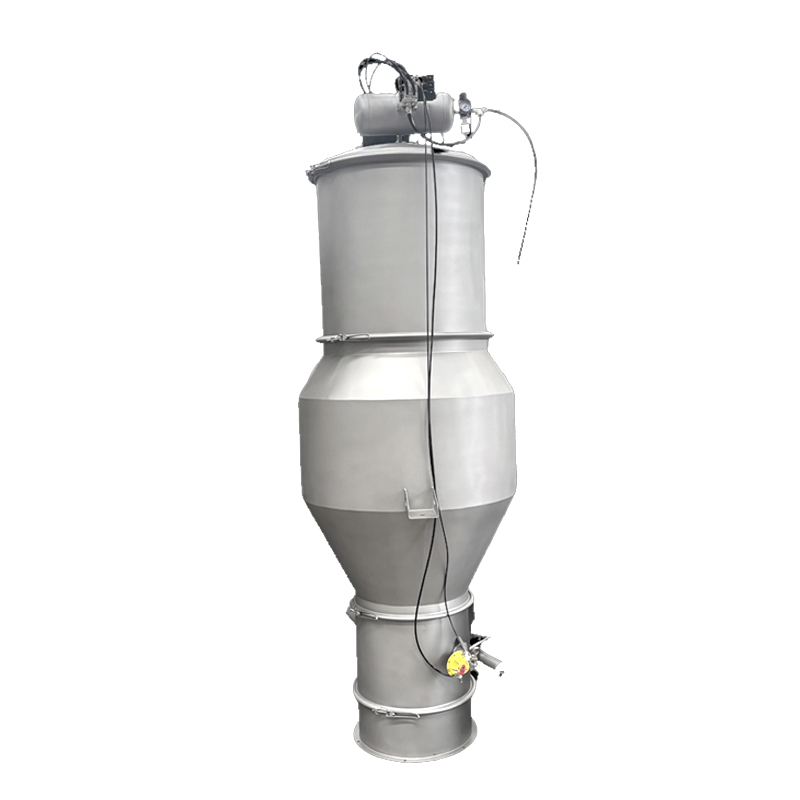

Vacuum Conveyor

Product description

Continuous vacuum feeding machine is a highly efficient and automated material conveying equipment. It relies on vacuum negative pressure suction to achieve continuous material transportation. It is suitable for various materials such as particles and powders and is widely used in food, pharmaceutical, chemical and other industries. It does not require manual feeding, can avoid material dust and pollution, and can be flexibly connected to various equipment on the production line. It occupies a small area, has low energy consumption, and greatly improves the conveying efficiency and cleanliness of the production environment.

Working principle

The working process of the continuous vacuum feeder: The vacuum pump operates to create a negative pressure in the pipeline and the separation chamber, drawing the material from the source and transporting it with the airflow into the separation chamber. Inside the chamber, the filter separates the material from the air, with the air being discharged and the material gathering by gravity. The material is continuously discharged to the downstream equipment through the unloading mechanism. The entire process maintains a stable negative pressure, achieving continuous feeding.

Product features

1. High efficiency: Continuous and uninterrupted transportation, controllable transportation volume, suitable for continuous operation of production lines.
2. Clean and safe: Closed transportation without dust emission or pollution, reduces manual contact, and lowers labor intensity and safety risks.
3. Strong adaptability: Compatible with various materials such as powders and particles, the pipeline can be flexibly arranged, suitable for different scenarios.
4. Low cost: Energy consumption is controllable, the structure is simple and easy to maintain, reducing operation and maintenance costs and downtime costs.
5. Easy integration: Can be linked with upstream and downstream equipment to achieve intelligent control, improving the automation level of the production line.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

Production line diagram

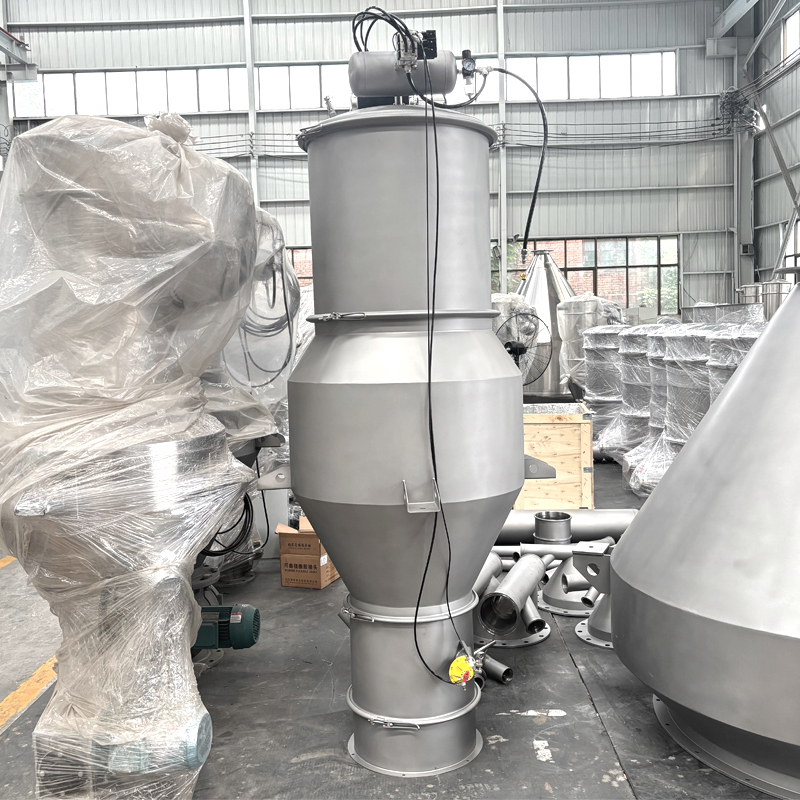

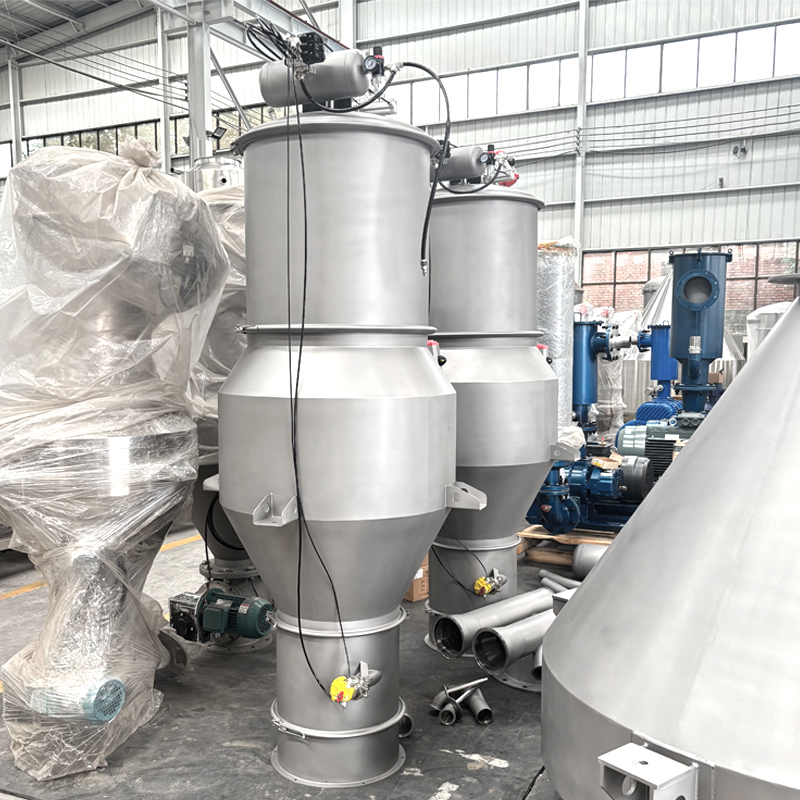

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
