| Miejsce pochodzenia: | Chiny |
|---|---|
| Nazwa handlowa: | EVERSUN |
| Orzecznictwo: | ISO,CE |
| Numer modelu: | ZPS |
| Minimalne zamówienie: | 1 zestaw |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Standardowe export drewniane obudowy |
| Czas dostawy: | w ciągu 7-15 dni roboczych |
| Zasady płatności: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Możliwość Supply: | 5000set/rok |
| Funkcjonować: | Przesiewanie\separacja\sortowanie\przesiewanie | Słowo kluczowe: | Sito przemysłowe |
|---|---|---|---|
| Słowa kluczowe: | Wibrujący ekran | Konserwacja: | Łatwy i niski koszt |
| Tworzywo: | Stal nierdzewna | Zakres wielkości przesiewania: | Od 1mm do 100mm |
| Gwarancja: | 1 rok | Rozmiar siatki: | 2-500 oczek |
| Średnica: | 400-2000 mm | Wniosek w sprawie sprawdzania: | Krągła, eliptyczna lub liniowa |
| Metoda instalacji: | Montowane na podłodze lub zawieszane | Funkcje specjalne: | Działanie na kurz i niski hałas |
| Dostosowane: | wsparcie |
Product description

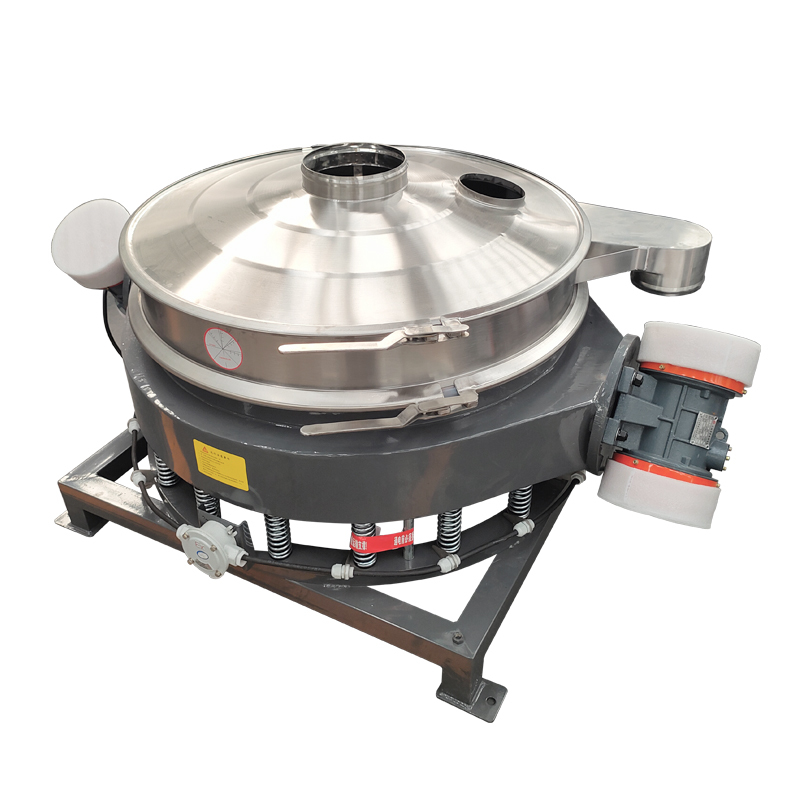

The straight discharge vibrating screen is an efficient screening equipment. Its unique design lies in the fact that a discharge port is equipped at the bottom of the screen machine, which can achieve rapid and automatic discharge and diversion of materials. It is particularly suitable for screening tasks with high precision and high flow rate requirements, featuring high screening efficiency, large processing capacity, easy cleaning and maintenance. This equipment plays an important role in the screening and filtration of powders, fine particles and slurry materials in multiple industries, especially suitable for production lines that require continuous and rapid operation.
Working principle
The working principle of the straight-through screen is to utilize the powerful vibration generated by the vibration motor to lift, disperse and stratify the materials on the screen surface. At the same time, with its unique direct-through design, the separated materials can be discharged out of the machine through the shortest path and the fastest speed, thereby achieving extremely high screening efficiency and output.
Product Features
Main features
1. Direct-flow design: Materials are vertically screened and quickly discharged directly, with a simple path.
2. Powerful vibration source: Two vibration motors provide strong excitation force, ensuring effective screening.
3. Central discharge: The materials screened out from below are discharged centrally at the bottom, flowing smoothly and efficiently.
4. Automatic net cleaning: Standard equipment such as bouncing balls is provided, effectively preventing the screen from getting clogged.
Core advantage
1. High efficiency and large output: Strong vibration force, fast discharge, significant processing capacity.
2. Rapid discharge: No stagnant areas, suitable for continuous operation.
3. Easy maintenance: Simple internal structure, quick replacement of screen mesh, easy cleaning.
4. Smooth operation: Stable equipment operation, low noise.
5. Wide applicability: Can screen various materials such as powders and particles.
Product parameter
| Model | Power(kw) | Sieving diameter(mm) | Dimension(mm) |
| BZP-600 | 0.12 | 520 | 740*600*560 |
| BZP-800 | 0.18 | 720 | 1010*800*600 |
| BZP-1000 | 0.18 | 890 | 1200*970*640 |
| BZP-1200 | 0.25 | 1090 | 1430*1700*700 |
| BZP-1500 | 0.25 | 1390 | 1780*1470*760 |
| Machine can be customized based on your need | |||
