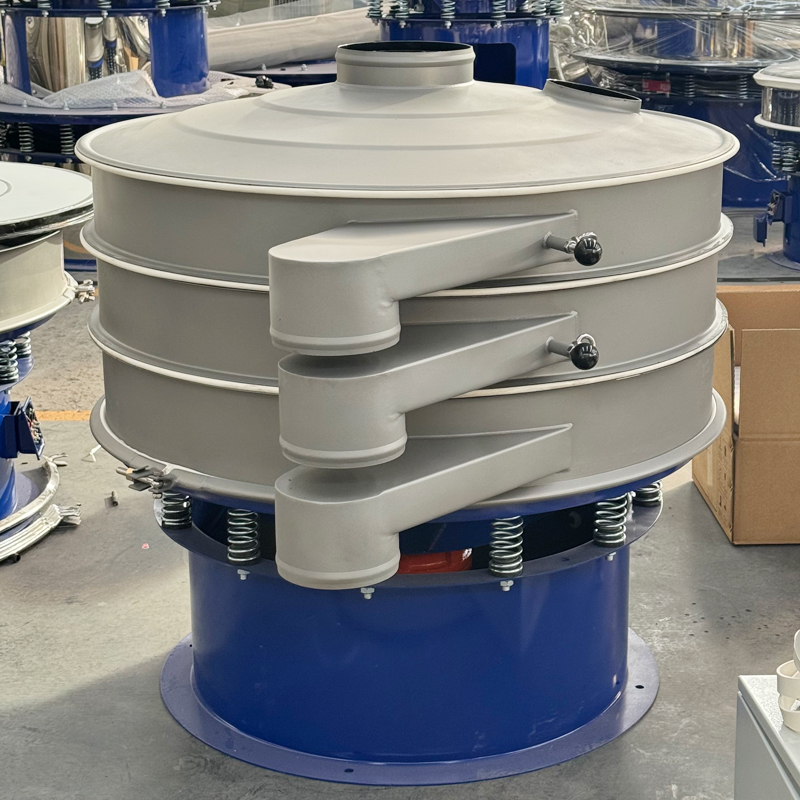

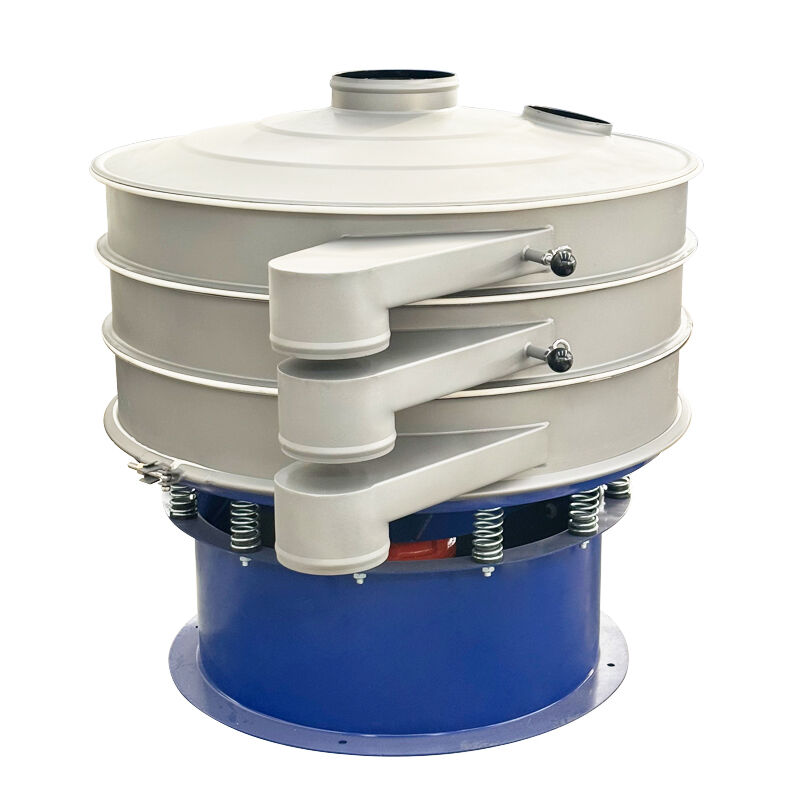

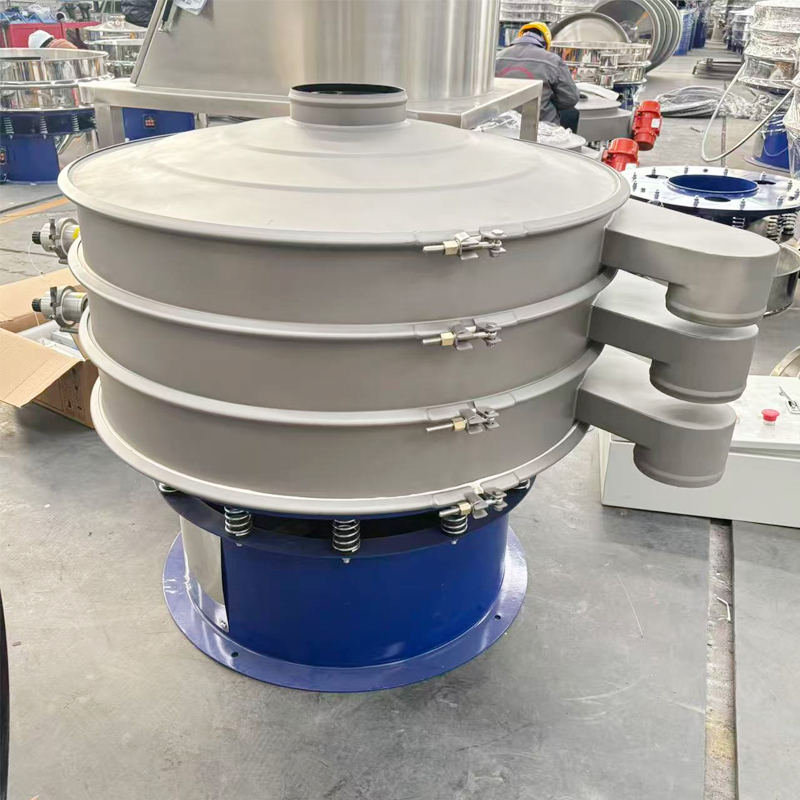

Vibratory Screening Machine

Product description

The rotary vibrating screen is a highly efficient and precise screening device. It uses a vertical vibrating motor as the excitation source and can simultaneously perform screening, grading, and impurity removal on materials. The fully enclosed structure of this equipment prevents dust from spilling out, has low noise, and low energy consumption. It features high screening accuracy, large processing capacity, convenient screen replacement, and a long service life. Therefore, the rotary vibrating screen is one of the key devices for achieving modernized continuous production in the production lines of many industries such as food, chemical, ceramics, metallurgy, and new materials.

Working principle
The core working principle of the rotary vibrating screen stems from its unique power transmission and combined motion form. The vertical vibration motor at the top of the equipment is its power source, and there is an eccentric block at each end of the motor.
By adjusting the relative angles of these two eccentric blocks, a complex three-dimensional motion can be achieved: the superposition of horizontal, vertical and inclined movements, and the motion trajectory in space appears as a three-dimensional spiral line.
This process can be broken down into:
1. Horizontal circular motion: This causes the materials on the sieve surface to spread evenly and move towards the periphery.
2. Vertical up-and-down vibration: This enables the materials to jump on the sieve surface, effectively preventing the clogging of the sieve holes and accelerating the passage of fine particles through the sieve.
The combined application of these two types of movements enables the materials to be fully dispersed and diluted on the screening surface, while also facilitating efficient stratification and screening through the sieve, thereby achieving rapid screening, classification or solid-liquid separation.

Features & Benefits

1. Efficient and precise screening: The combined vibration mode enables the materials to be rapidly dispersed and screened, with high efficiency and precise accuracy.
2. Strong anti-blocking net: The strong vibration in the vertical direction can effectively clean the screen and prevent blockage.
3. Fully enclosed and dust-free: The closed design eliminates the escape of dust, ensuring environmental protection and safety.
4. Smooth operation and low noise: The equipment operates smoothly with low noise, creating a friendly working environment.
5. Long-lasting and durable: There is no transmission structure inside, and the core components are sturdy and durable. The replacement of the screen is convenient.
6. Easy adjustment and flexible: By adjusting, the movement trajectory of the materials can be changed to meet various process requirements.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening
