| Miejsce pochodzenia: | Chiny |
|---|---|
| Nazwa handlowa: | EVERSUN |
| Orzecznictwo: | ISO,CE |
| Numer modelu: | QVC |
| Minimalne zamówienie: | 1ZESTAW |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Standardowe drewniane skrzynie eksportowe |
| Czas dostawy: | w ciągu 7-15 dni roboczych |
| Zasady płatności: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Możliwość Supply: | 5000 zestawów/rok |
| Zużycie energii: | Niskie zużycie | Dostosowanie przetwarzania: | Tak |
|---|---|---|---|
| Metoda ładowania: | Dźwig | Słowo kluczowe: | Stacja zrzutowa |
| Działanie: | Ręczny lub automatyczny | Typ wysyłki: | Transportem/lotem itp. |
| Poziom hałasu: | Niski | Sterowanie PLC: | można wybrać |
| Wymagania dotyczące zasilania: | 460 V, 3 fazy | Typ operacji: | Skrzynka sterownicza/szafa sterownicza/PLC |
| Podnoszenie wagi: | 2 TONY | Stosowanie: | Rozładunek torby masowej |
| Konserwacja: | Niski | Zastosowany materiał: | Proszek/płatki/cząsteczki itp. |
| Wymiar: | Dostosowane |
Product description

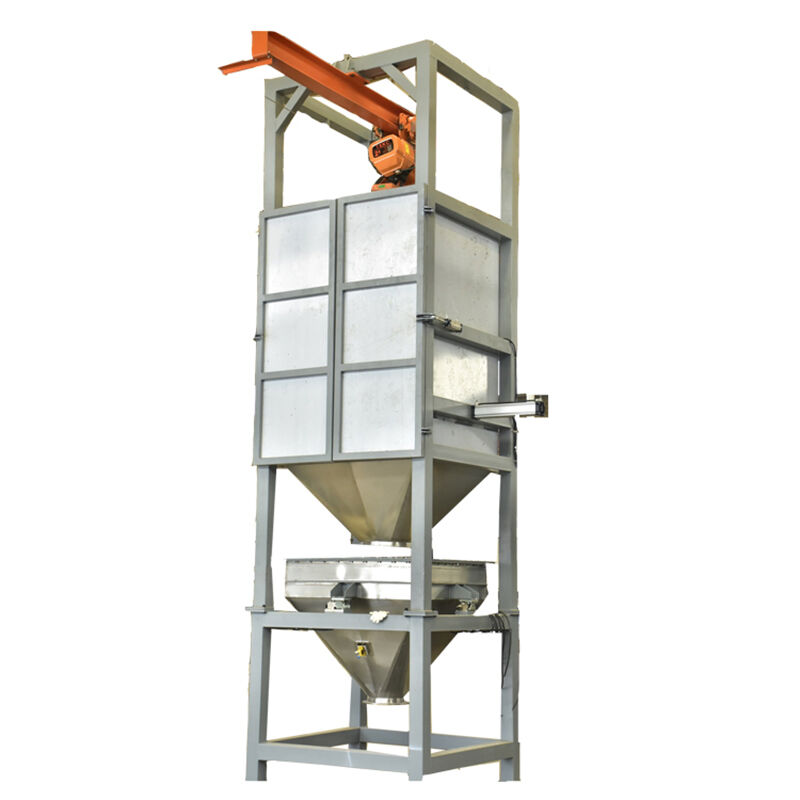

The sealed ton bag feeding station is a fully automatic bag-opening and unloading equipment specifically designed for ton bags containing materials. It adopts a fully enclosed structure and integrates material lifting, dust-free bag opening, and efficient dust removal systems, completely solving the problems of dust pollution and high labor intensity caused by traditional manual bag opening. This equipment complies with environmental protection and GMP standards, has a compact structure and customizable materials, and is widely used in the chemical and food industries. It is an ideal choice for achieving automated and clean feeding of powder and granular materials.
Working principle
After the ton bags are lifted and positioned, their discharge ports are introduced into a sealed chamber and sealed tightly. Subsequently, the bag openings are loosened, and the materials fall into the lower hopper under the force of gravity. During this process, the built-in dust removal system operates simultaneously to maintain negative pressure inside the chamber to prevent dust from spilling out. For materials with poor fluidity, the equipment will activate vibration or tapping devices to assist in discharging, preventing bridging. Finally, the materials are automatically sent to the next process through the bottom-connected conveying equipment, completing a dust-free and efficient unloading operation.
Features & Benefits
Main features:
1. Completely sealed structure: Prevents dust from escaping at the source.
2. Modular design: Compact structure, easy to install and maintain, flexible configuration.
3. Function integration: Integrates suspension, disintegration, dust removal, and feeding.
4. Safe and reliable: Equipped with protection and explosion-proof devices to ensure safety.
5. Simple operation: Convenient bag hanging, quick bag replacement, reduces labor intensity.
| Bag size application | 1000x1000x1600 mm |
| Power Source | AC 380 v ± 5%50 Hz |
| Air source pressure | ≥ 0.6MPa |
| Air consumption | ≤ 0.6 m ³/min |
| wind volume for dust-removal | 800-2500m3/h |
| Environment humidity | -100C-400C |
| Cutting capacity | 10-20 bags/h (manual) |
Detail display

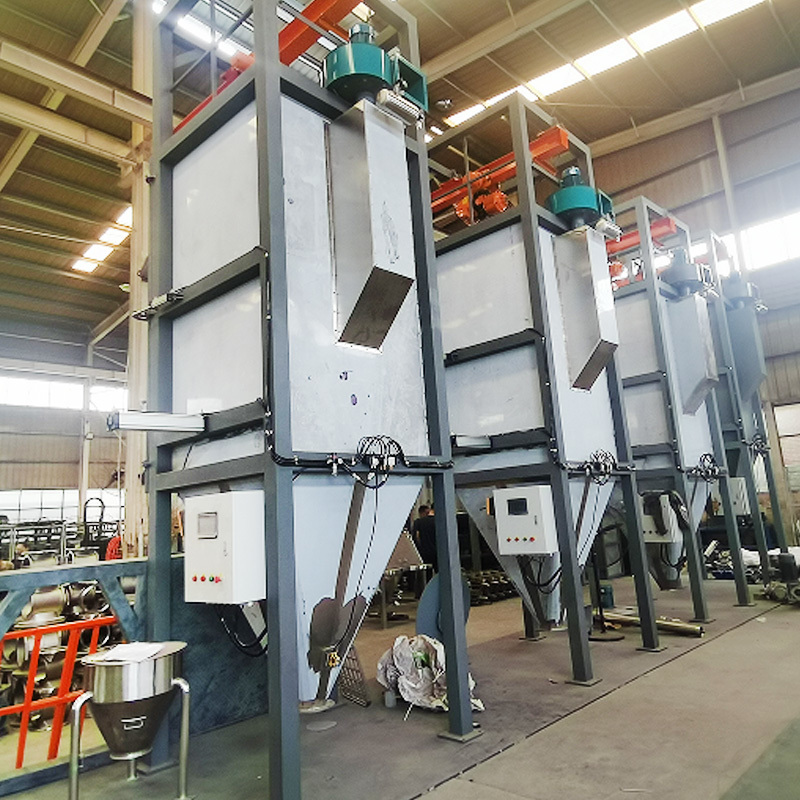

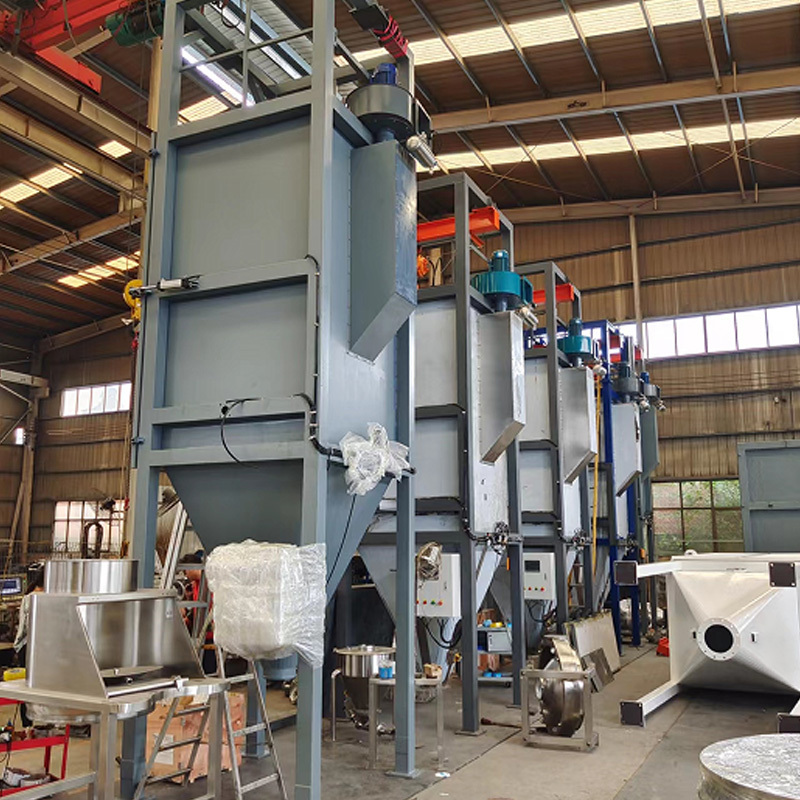

Product Shows
Application
The bulk bag unloading machine is mainly used in fields such as plastics, rubber, food, medicine, and chemicals for unpacking and discharging bags of dry powders and granular materials, such as plastic resins and food additives.
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
