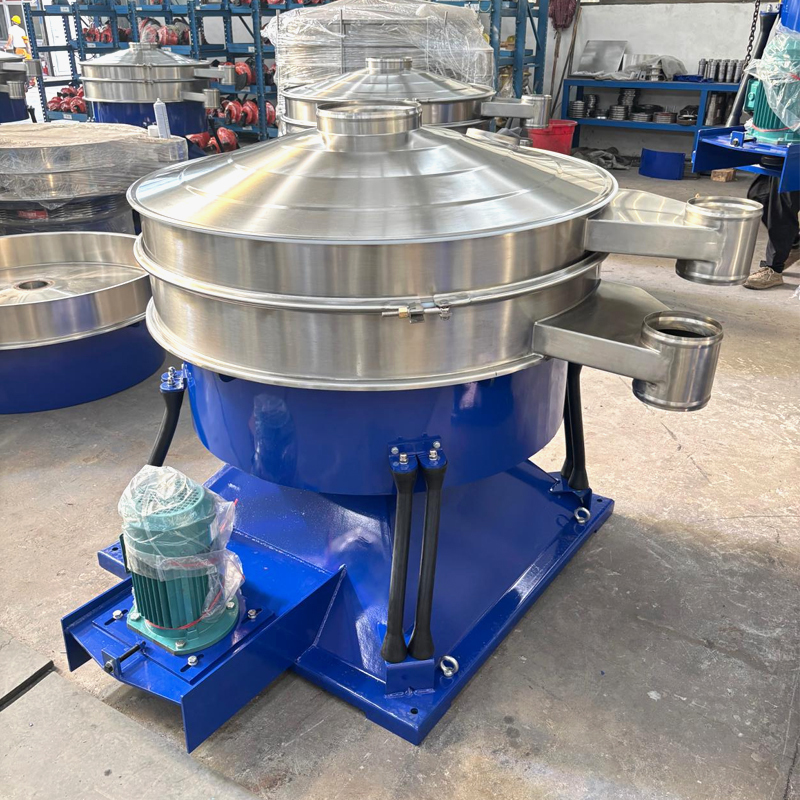

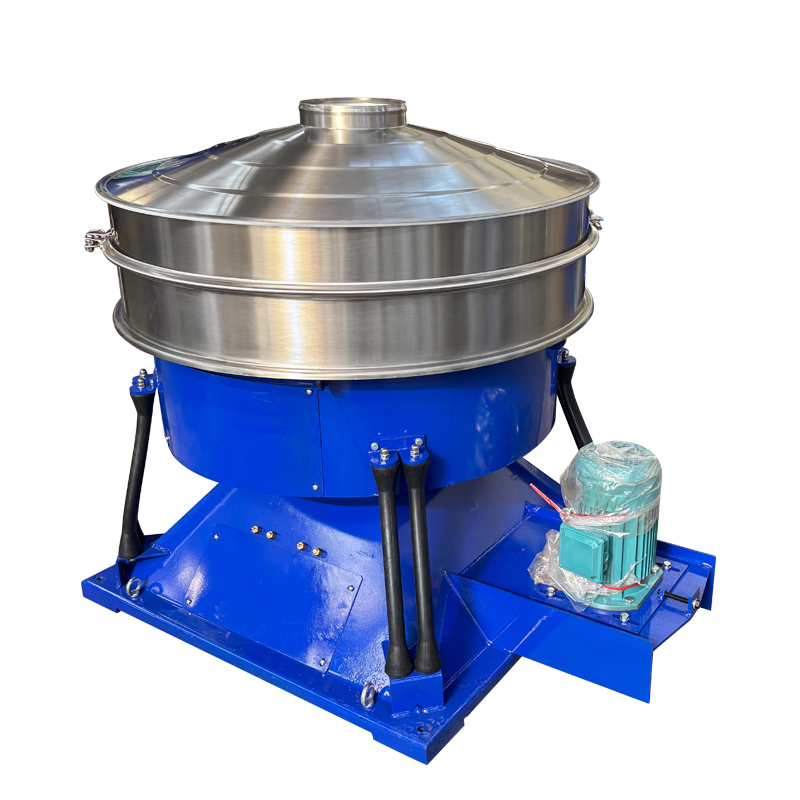

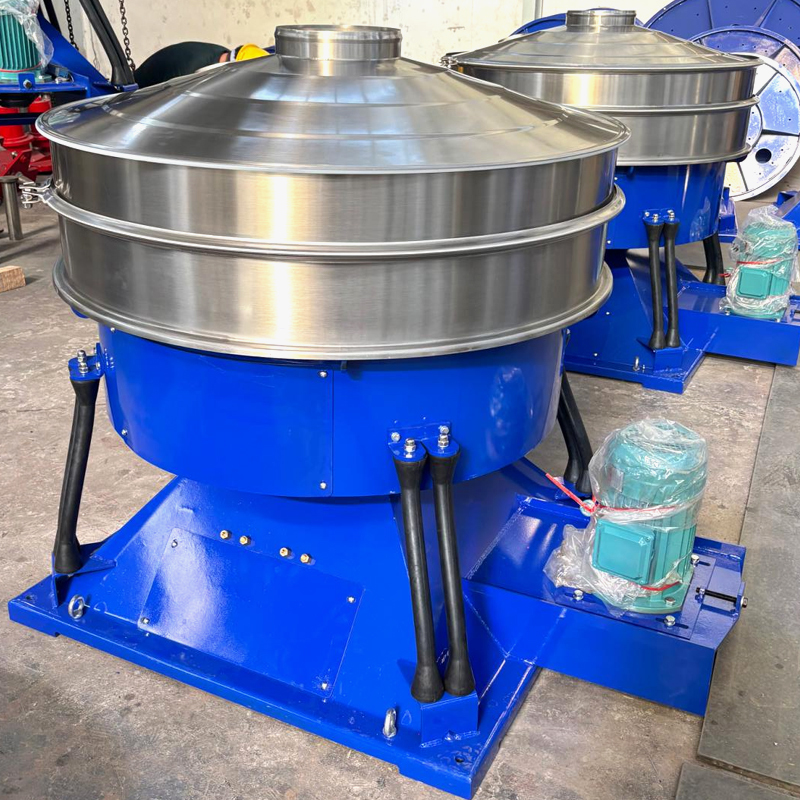

High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

The swing sieve is an efficient and precise screening equipment that is compatible with multiple layers of screen meshes. It can simultaneously complete the classification of 2 to 6 types of materials.
It features high screening accuracy and large processing capacity. During the screening process, it causes minimal damage to the materials and can be adapted to various material types such as fine powder particles and irregular materials. It is widely used in screening scenarios in industries like food, chemical engineering, medicine, and mining.

Working principle

The core of the vibrating screen achieves the screening action through the eccentric shaft drive mechanism: The motor drives the eccentric shaft to rotate, causing the screen box to undergo a unique three-dimensional swinging motion - it includes both the horizontal circular motion along the screen surface and the vertical up-and-down throwing motion, which simulates the shaking and tossing actions of manual screening. This movement enables the materials to be evenly dispersed on the sieve surface and fully contact the sieve mesh. Materials smaller than the sieve holes can pass through the sieve quickly, while materials larger than the sieve holes are transported forward orderly along the sieve surface. This ultimately achieves efficient classification of materials of different particle sizes, while avoiding material accumulation and blockage of the sieve holes.

Product Features

1. High efficiency: The screening accuracy exceeds 95%, with a large processing capacity and suitable for continuous production;
2. Wide applicability: It can screen fine powder particles and irregular materials, causing little damage to the materials;
3. Flexible classification: Supports 2-6 layers of screen meshes, completing multi-granularity classification in one go;
4. Maintenance-friendly: Low operating noise, little vibration, and the screen holes are not prone to clogging, with a long service life;
5. Various applications: Widely used in the fields of food, medicine, chemical industry, and mining.

Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.

Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.

Why choose us

About us





FAQ

Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.

Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
