| Miejsce pochodzenia: | CHINY |
|---|---|
| Nazwa handlowa: | EVERSUN |
| Orzecznictwo: | ISO,CE |
| Numer modelu: | QVC |
| Minimalne zamówienie: | 1set |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Standardowe export drewniane obudowy |
| Czas dostawy: | w ciągu 7-15 dni roboczych |
| Zasady płatności: | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Możliwość Supply: | 5000set/rok |
| Tom: | 50L-5000L | System sterowania: | Plc |
|---|---|---|---|
| Słowa kluczowe: | Mikser proszku | Typ maszyny: | Mieszanie wstążki |
| Słowo kluczowe: | mikser | Tworzywo: | stal nierdzewna |
| TRYB ROZŁADOWANIA: | Pneumatyczny duży zawór drzwiowy lub motylkowy | Gwarancja: | 1 rok |
| Stosowanie: | Mieszanie proszku, cząstek i cieczy | wymiar: | Dostosowane |
| Odpowiednie branże: | Żywność, farmaceutyczne, chemiczne, kosmetyczne i inne branże | Metoda rozładowywania: | Ręczny/pneumatyczny |
| Dostosowywanie: | Dostępny | Model produktu: | Dostosowywanie |
| Funkcjonować: | Mieszanie surowca |
Product description
The helical ribbon mixer is a cornerstone of modern powder processing lines. Renowned for its powerful mixing capability, it excels at handling challenging materials like sticky, moist, or density-varied blends without dead zones. Its U-shaped trough and precision ribbons ensure high uniformity with minimal residue, facilitating easy cleaning and rapid material changeover. This robust and reliable machine is vital for guaranteeing batch-to-batch consistency and superior end-product quality in industries from pharmaceuticals to food and chemicals.
Working principle
The helical ribbon mixer operates on the principle of forced convective and diffusive mixing. As the dual ribbons rotate, they generate opposing material flows. This creates intense, three-dimensional movement within the vessel—material is simultaneously moved axially throughout the trough and radially sheared and folded. This combination of bulk convection and controlled diffusion ensures that all ingredients are rapidly and homogeneously blended into a uniform product.
Product features
High Mixing Intensity Handles a wide range of materials, including powders, granules, pastes, and blends with large density differences, eliminating dead zones. Superior Homogeneity Achieves a high degree of uniformity in a short mixing time through intense three-dimensional movement, ensuring batch-to-batch consistency. Easy Cleaning & Low Residue The U-shaped trough and precision ribbon design minimize material buildup, allowing for fast cleaning and product changeover. Robust & Reliable Operation Built with a sturdy structure and stable drive, it is designed for continuous duty in demanding environments with minimal downtime. Broad Application Range Serves as a core unit in industries from pharmaceuticals and food to chemicals and batteries for critical mixing operations.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Product details

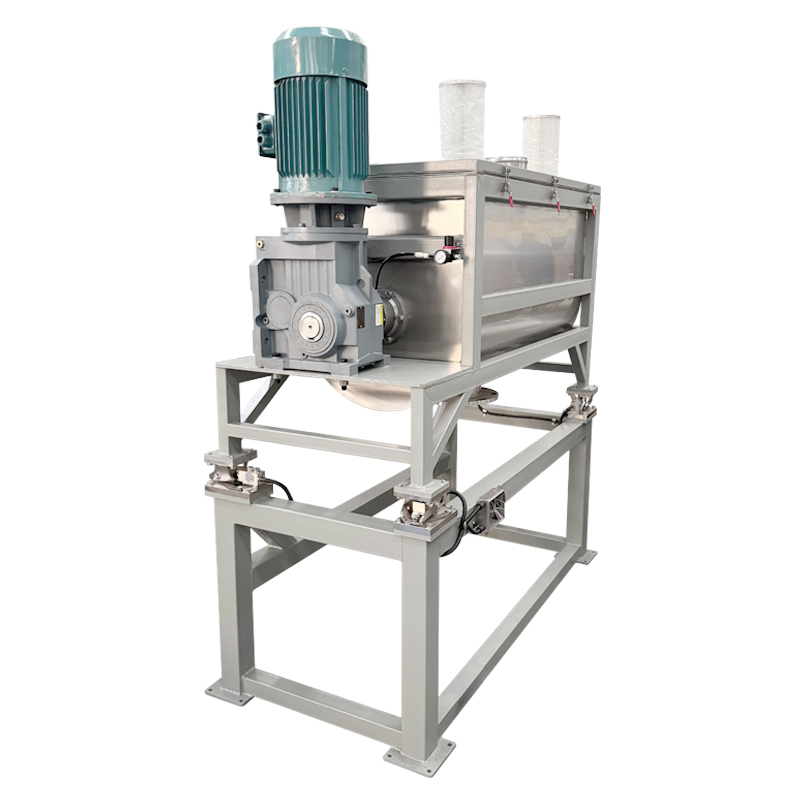

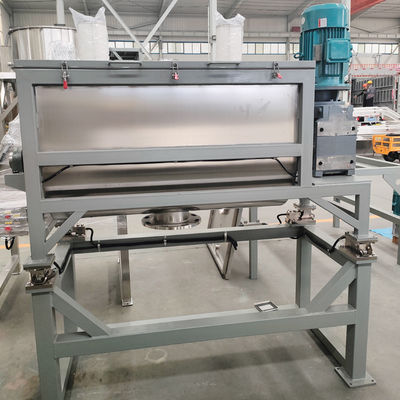

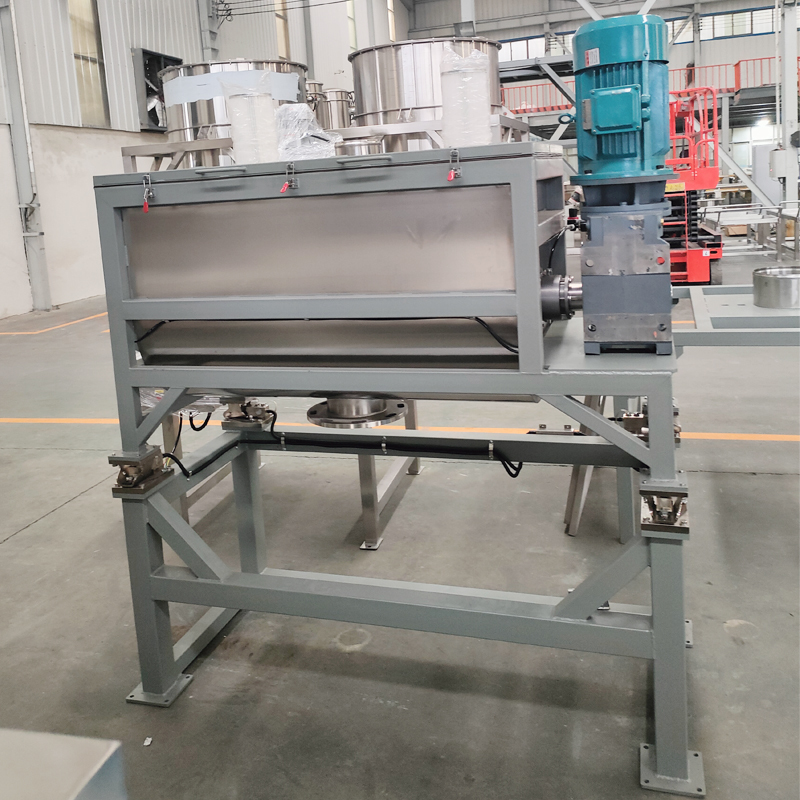

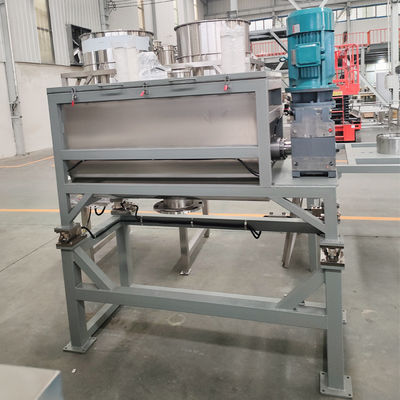

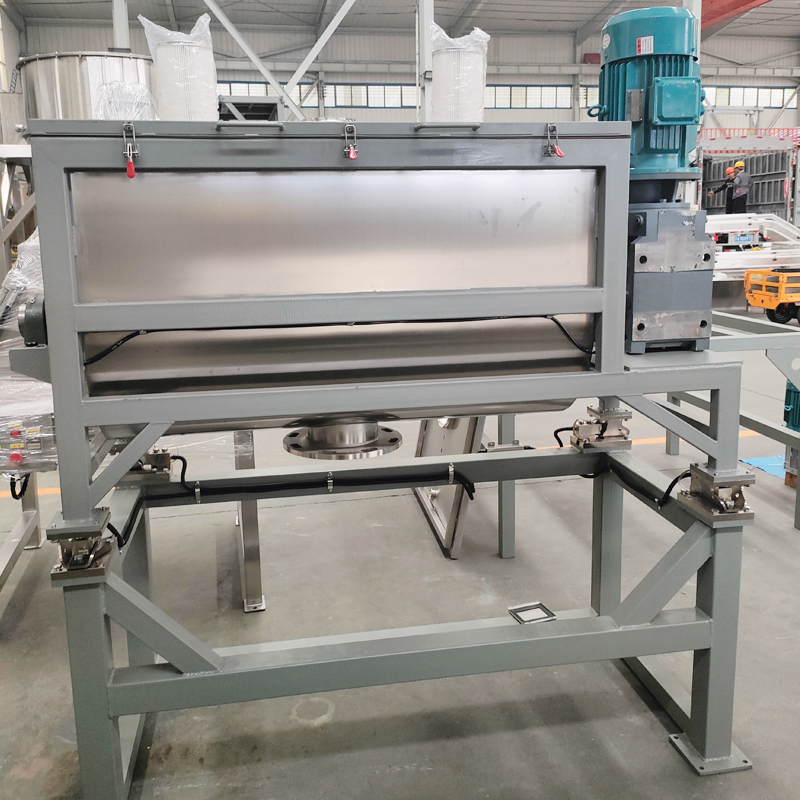

Product shows
Product application
Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
Packaging & Shipping
Why Choose us
About us
Company Profile
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
