| Place of Origin: | CHINA |
|---|---|
| Nazwa handlowa: | EVERSUN |
| Orzecznictwo: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1set |
| Cena: | negocjowalne |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Supply Ability: | 5000set/year |
| Volume: | 50L-5000L | Control System: | PLC |
|---|---|---|---|
| Key Words: | Powder mixer | Keyword: | Mixer machine |
| Material: | Stainless Steel | Discharge Mode: | Pneumatic large door or butterfly valve |
| Warranty: | 1 year | Usage: | Mixing Powder,Particle and Liquid |
| Dimension: | Customized | Suitable Industries: | Food, pharmaceutical, chemical, cosmetic, and other industries |
| Discharging Method: | Manual/Pneumatic | Product Model: | Customization |
| Function: | Mixing Raw Material |
Product description

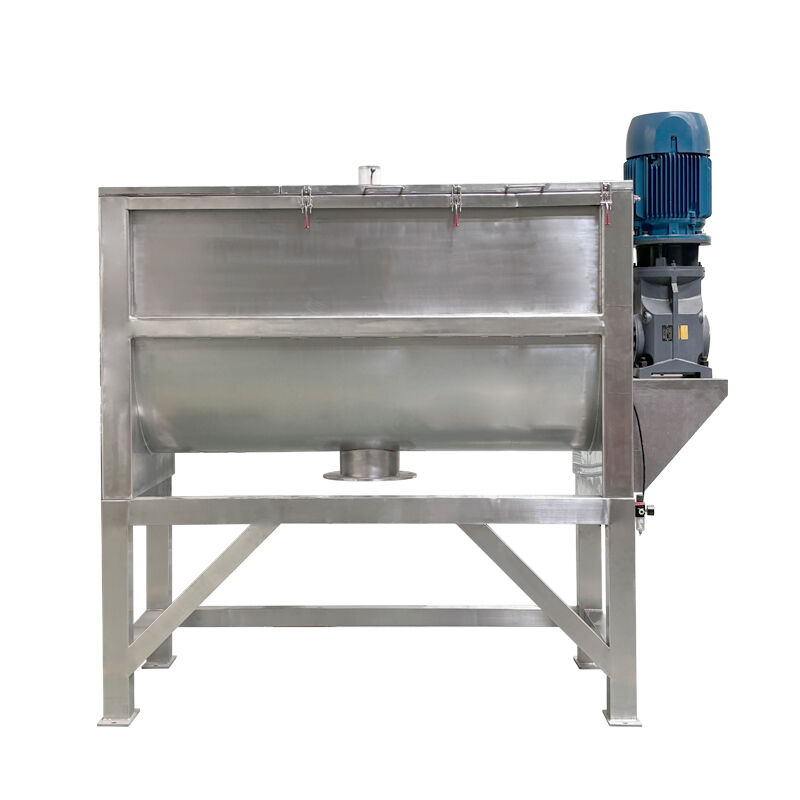

The helical mixer is an efficient heavy-duty industrial mixing equipment. Its core feature is the unique helical-shaped stirring blades inside. It is particularly adept at handling high-viscosity, easily agglomerating or solid-particle-containing difficult-to-mix materials. During the mixing process, it can achieve powerful yet gentle stirring effects. The equipment has a sturdy structure, reliable operation, and clean discharging. Therefore, it is widely used in the food, chemical, and new materials industries, and is an ideal choice for handling complex mixing tasks.
Working principle
The core working principle of the spiral mixer is to utilize its unique double-spiral stirrer to drive the materials to perform three-dimensional circular motion within the container.
Specifically, when the stirrer rotates:
The outer spiral blade pushes the material along the inner wall of the cylinder from both ends towards the center slowly.
The inner spiral blade, in the opposite direction, pushes the material from the center rapidly towards both ends.
As a result, the materials simultaneously undergo both axial and radial flow. During this process, the material layers are constantly being divided, exchanging positions, and achieving rapid, uniform and gentle mixing under the influence of convection, diffusion and moderate shear forces. Eventually, a high degree of homogeneity is achieved both macroscopically and microscopically.
Product features
1. Efficient and seamless mixing: Specifically designed for high-viscosity and prone-to-caking materials, it achieves three-dimensional forced convection, ensuring thorough and uniform mixing.
2. Gentle action and shape preservation: Mainly based on macroscopic convection, with low shear force, it can effectively protect the original physical properties of the materials.
3. Wide adaptability and broad range: By adjusting, it can be adapted to various materials ranging from powders to viscous paste-like substances, with high versatility.
4. Rapid discharging with minimal residue: The unique U-shaped trough body and open design ensure that the materials can be almost completely discharged.
5. Robust, durable, and easy to maintain: With a reliable structure and smooth operation, it is suitable for heavy-load conditions and continuous production, and has low maintenance costs.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Product details

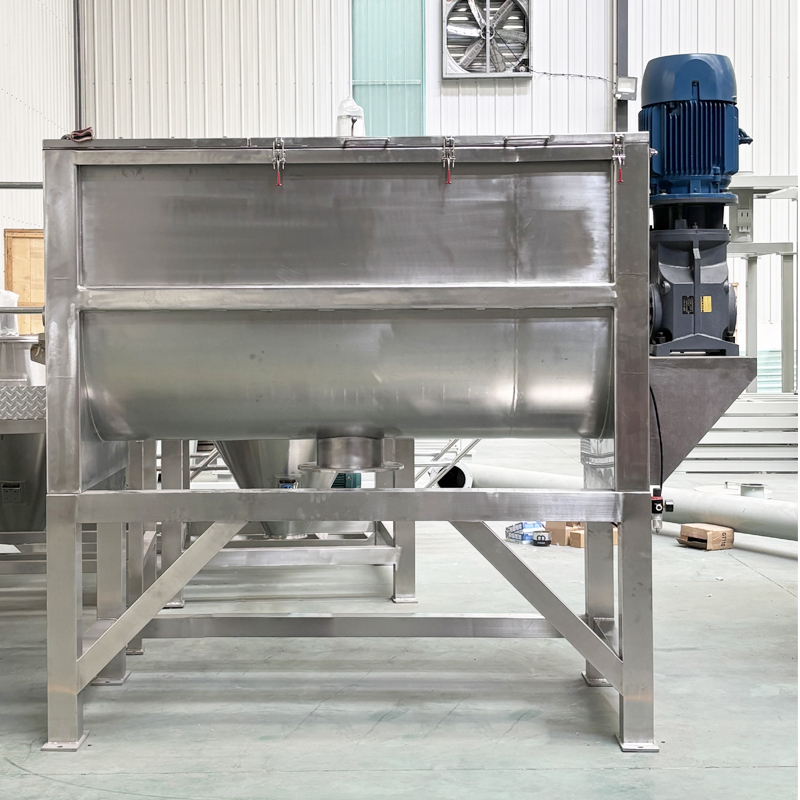

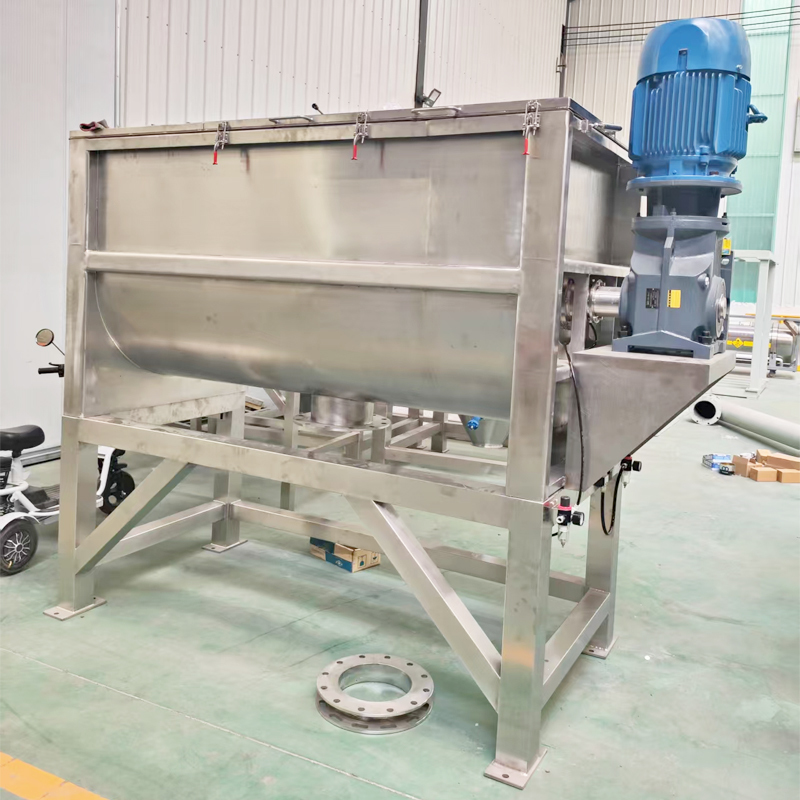

Product shows
Product application
Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
Packaging & Shipping
Why Choose us
About us
Company Profile
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
