| Miejsce pochodzenia: | Chiny |
|---|---|
| Nazwa handlowa: | EVERSUN MACHINERY |
| Orzecznictwo: | ISO,CE |
| Numer modelu: | Eybs |
| Minimalne zamówienie: | 1 zestaw |
| Cena: | negocjowalne |
| Szczegóły pakowania: | Standardowy pakiet drewniany eksportowy |
| Czas dostawy: | w ciągu 7-15 dni roboczych |
| Zasady płatności: | T/T, Western Union, MoneyGram, L/C |
| Możliwość Supply: | 5000sets/rok |
| Ruch: | ruch trójwymiarowy | Metoda czyszczenia ekranu: | Odbijająca się piłka/system ultradźwiękowy |
|---|---|---|---|
| Cechy: | Wysoka wydajność, niski hałas, łatwy w utrzymaniu | Sprężyna tłumiąca: | sprężyna izolacyjna od wibracji gumy |
| Obowiązujące branże: | Gospodarstwa, sklep detaliczny, sklep spożywczy, sklepy z drukowaniem | Funkcje: | Filtrowanie, czyszczenie i klasyfikacja |
| Kolor: | Prośba klientów | Metoda czyszczenia siatki: | odbijane piłki |
| Personalizacja: | Dostępny | Obróbka powierzchni: | Piaskowanie, polerowanie, malowanie itp. |
| Warstwa: | 1~5 | Stan: | NOWY |
| Tworzywo: | Stal nierdzewna | Typ wibracji: | ruch opadający |

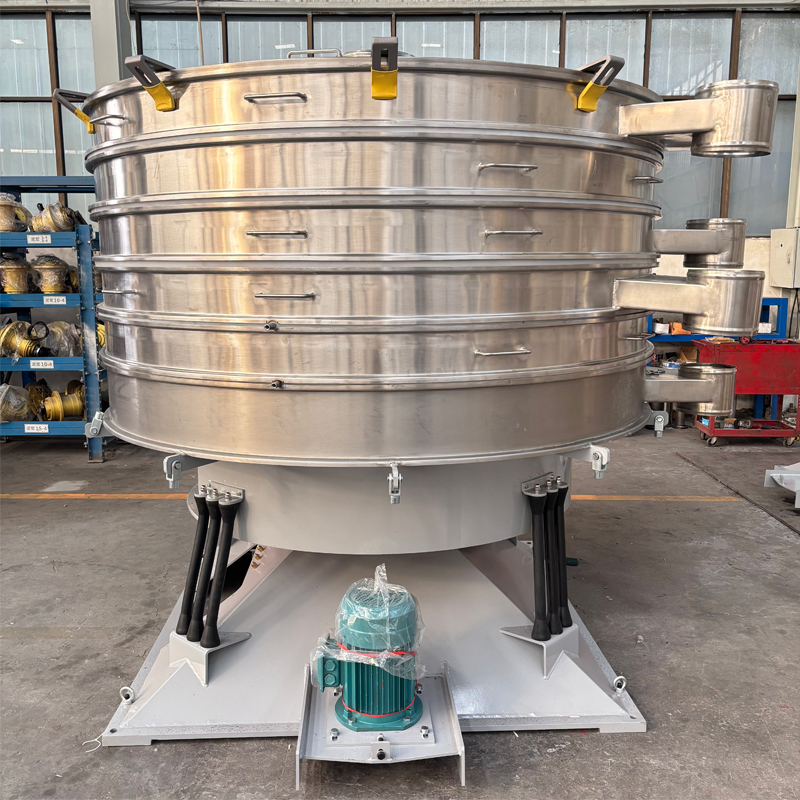

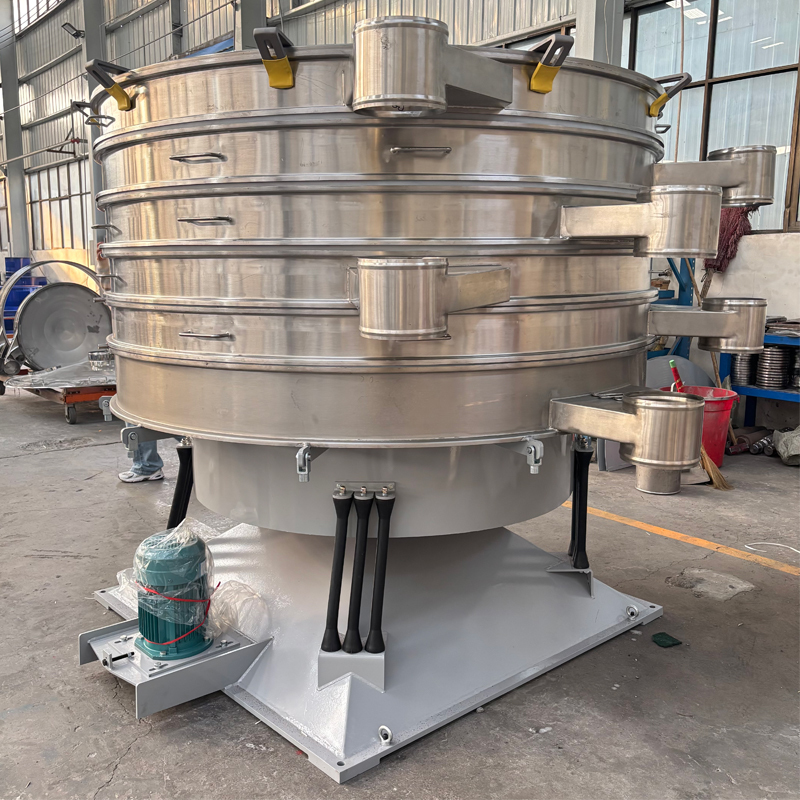

Product Introduction
The vibrating screen is an efficient and precise industrial screening equipment. It mimics the gentle manual screening action of humans, and is particularly suitable for processing fragile, fine, sticky or sheet-like materials. This equipment is renowned for its high precision, high output, low maintenance and long lifespan. At the same time, it operates very smoothly with extremely low noise, effectively protecting the integrity of the materials. It is an ideal choice for high-quality screening in industries such as chemicals, food, and metal powder.

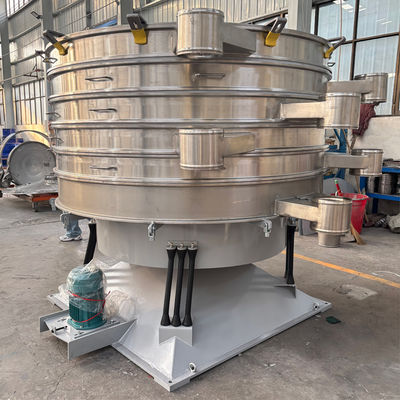

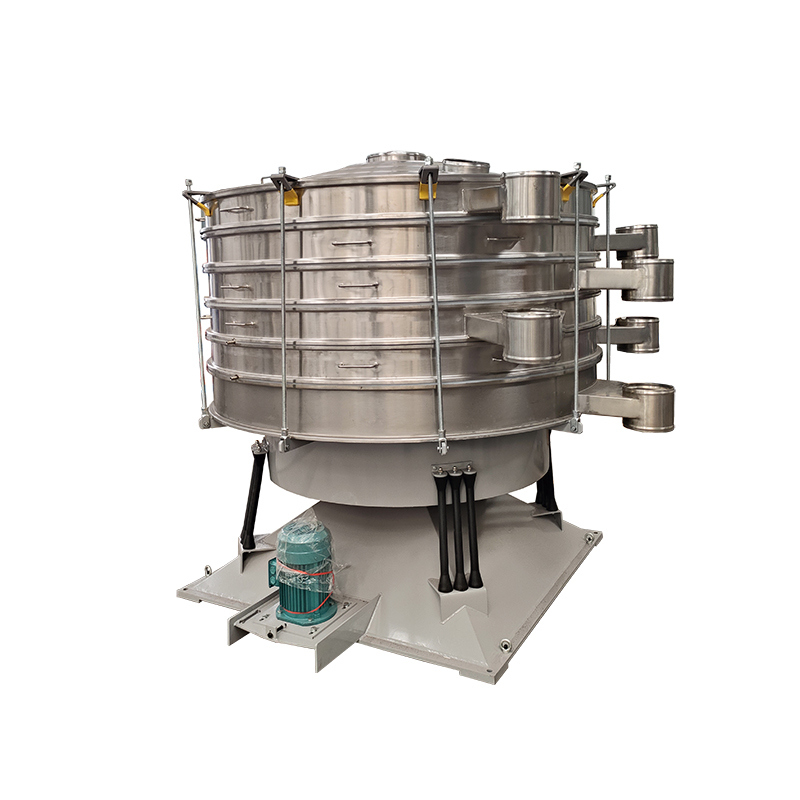

Working principle
The vibrating screen is an efficient and precise industrial screening equipment. Its core advantage stems from the unique motion principle that it simulates human manual screening. It does not rely on intense vertical vibration but instead uses a gentle, approximate horizontal circular oscillation to process the materials. During operation, the materials spread evenly on the screen, layer by layer, and move slowly along a spiral trajectory towards the edge. In this process, fine particles continuously pass through the screen, while coarse particles eventually exit from the edge. This gentle motion mode is particularly suitable for fragile, fine, sticky or sheet-like materials, effectively protecting their integrity. At the same time, with its high precision, large output and low noise, it has become an ideal choice for high-quality screening in the chemical, food, and pharmaceutical industries.
Product Features
High precision and high efficiency
The gentle oscillating motion enables the materials to pass through the screen fully, resulting in excellent screening accuracy and output.
2. Gentle and non-destructive
Without strong impact, it can perfectly preserve the original shape and integrity of fragile materials.
3. Strong anti-clogging function
Equipped with a cleaning net device, it can effectively remove clogged particles and ensure continuous and stable operation.
4. Low maintenance and long lifespan
The operation is smooth, the core components wear out slowly, the screen has a long service life, and the maintenance cost is low.
5. Smooth operation with low noise
The equipment has good dynamic balance and operates with low noise, meeting the requirements of a clean environment.
6. Wide application range
With simple adjustments, it can meet the screening requirements for various types of materials with different properties.
Product Parameter
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5
|
600mm |
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67 |
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
Production line diagram
Application
Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.
1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
Why choose us
About us
FAQ
Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.
Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
